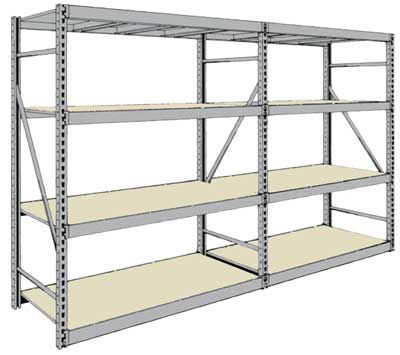

Madix Wide Span

Wide Span is a lighter duty type of Pallet Rack that does not require a Fork Lift.

When bulk or weight eliminates the use of storage shelving, Madix Wide Span is the ideal alternative. It is affordable, has many commercial, and industrial applications. Frames are slotted on 2" centers to accept brackets on horizontal beams. Beams are tied together by steel deck supports.

Madix Wide Span racking works well for displaying a lighter duty product such as Automotive Batteries, Automotive Tires, Automotive Oil, Pet Food, Tac Supplies for Farm Supplies, and a lot of heavier items or products with special display merchandising needs.

Wide Span Upright Frames

Heavy gauge 13/4" square Upright members with welded oval cross braces are slotted 2" OC for adjustability. Heavy-Duty Frame has additional bracing to resist accidental stacker impact. Top beam will fit flush to top of frame. Requires a minimum of two decks, four beams, per section.

Available in Heights from 48" high to 120" high and depths of 18" Deep to 48" Deep.

Wide Span Deck

Madix Wide Span Decks available is a Wood Deck, a Wood Sealed Deck, Wire Deck Styles, and a Steel Deck.

Wood Decks are durable 5⁄8" particle board and are available in a Regular and Heavy Duty configuration.

Sealed decks have baked-on polymer wax finish.

Wire Grid Decks are pieced for ease of handling Sturdy 5⁄16" (8 mm) diameter gauge wire welded on 1"x 6" (25 mm x 152 mm) grid centers Standard finishes: Silver Vein, Sahara, and Blue Gray.

Wide Span Deck Kits

Convenient, accurate ordering is assured with Wide Span Deck Kits.Each Deck Kit includes two Beams, correct number of Deck Supports, plus one Deck for ease of ordering. One kit required per level of shelving. Dart Clips for Beam locking are not included. Four Wide Span Dart Clips (WSDC-50) are required per kit.
