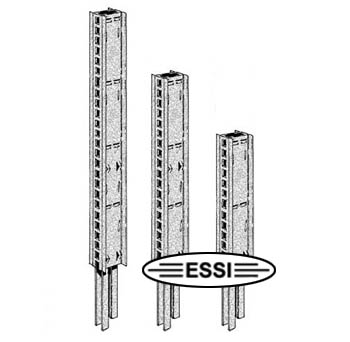

Madix Extension Uprights

Madix 6" Extension Upright

Adds and additional of 6" of vertical height to an existing to a single sided run or double sided aisle of Madix Shelving. Recommended load capacity on 200# per side.  Additional components include but not required are a 6" tall extension back and a splicer spanner.

Madix 12" Extension Upright

Adds and additional of 12" of vertical height to an existing to a single sided run or double sided aisle of Madix Shelving. Recommended load capacity on 200# per side.  Additional components include but not required are a 12" tall extension back and a splicer spanner.

Madix 18" Extension Upright

Adds and additional of 18" of vertical height to an existing to a single sided run or double sided aisle of Madix Shelving. Recommended load capacity on 200# per side.  Additional components include but not required are a 18" tall extension back and a splicer spanner.

Designed to add height to an existing either single sided Madix Shelving aisle or a double sided aisle Madix Gondolas.

Madix Backboard Extensions

When adding height to gondolas consider back board extenders and a Splicer Spanner that joins the extension back board to you existing back board.

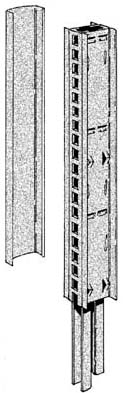

Includes an integrated connector that easily inserts into the top of an existing Madix shelving upright, with a set screw type expand connector, that solidly aligns the upright assembly.

Order one center spanner (SC) for 6" thru 36" and two for 48" or larger.

Maximum load capacity is 200 lb. when loaded one side only.

Add $6.95 for each Extension Upright End Cover

Add $11.95 for Splicer Spanner that joins existing back to extension back.
One Splicer Spanner is needed for every section that is extended.Upright Extension Pricing

Madix Shelving Extensions

Are comprised of a length of a basic upright cut to 6" to 36" long that ulrilize a male counterpart that connects the 2 extension peices of upright together.  Extending the height of an existing aisle or row of Madix Shelving.
