Madix End Cap

A standard End Cap is best configured with a single sided section in a double back configuration. The single sided section can be placed up against an existing aisle of shelving.

A single sided configuration will provide the most strength and stability as the base shoes are lock directly into the uprights on the Madix End Cap.

---

Madix Gondola Heights

36 Inches 42 Inches 48 Inches 54 Inches 60 Inches 66 Inches

70 Inches 72 Inches 78 Inches 84 Inches 90 Inches 96 Inches

Madix Gondola Depths

12 Inches 14 Inches 16 Inches 18 Inches 20 Inches

22 Inches 24 Inches 26 Inches 28 Inches 30 Inches

---

Madix End Frame

Has many uses and mounts directly to the end of an aisle of gondola shelving with a top bracket.

Does not support as much weight as the single sided configuration end cap as there is not support at the bottom of the fixture.

Compatble with all of the Madix Upper Shelves.

Available in all of the Madix standard heights and standard 3' and 4' widths plus a 24" and 30" width also by special order.

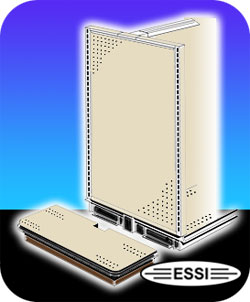

As the picture above shows, the base shelf if needed is a seperate unit that can be placed at the bottom of the End Frame.
