Madix Parts

Madix Back

B........One Piece Back H........P=Pegboard H=Hardboard NW........Nominal Width 3' or 4' (91.44 cm or 121.92 cm) NH........Nominal Extension Back/Extension Upright Height ........36" to 72" in 6" Increments ........(91.44 cm to 182.88 cm in 15.24 Increments)

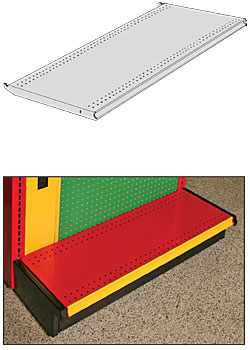

Madix Base Shelf

Integrally formed price tag molding matches molding on upper shelves (see SUS). Heavy gauge shelf bracket features lock tab to ensure quick installation and precision alignment. Other materials and construction  same as upper shelves.

Madix Base Shoe

Projection welded high tensile steel gives maximum load capacity. Exclusive “I” beam design is 5" low, with easy in “POSI-LOK” feature for quick no-error installation. Screwdriver leveling and electrical access. Kickplates of either closed or open type or  reinforced base shoes must be installed on shelving runs.

Madix Base Shoe Cover

Base End Covers complete the floor level “finished look” from Kickplate to Upright at each Gondola/Wall run. Order two pairs for each Gondola run or one pair for each Wall run. Order the same length as Base Shelf depth. Standard finish is chocolate body and nose. Alternate standard finish is black body and nose. Optional colors will have black nose. PAIR ONLY PRICING. Kickplates of either closed or open type or reinforced base shoes must be installed on shelving runs.

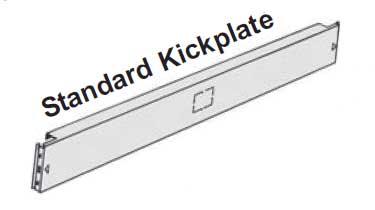

Madix Kick Plate

Standard Kickplate has convenient electrical knockout. Open Front Kickplate is designed to permit cleaning under shelving as required by some local codes. Both types “snap-in, snap-out” without disturbing the Base Shelf and have a fully floating feature allowing flush fit against uneven floors. The actual height for Standard Kickplates measures 1" less than the nominal height. Kickplates of either closed or open type or reinforced base shoes must be installed on shelving runs. $18.35

Madix Upright Cover

Matching lengths of standard UEC, trim off Extension Uprights at end of unit runs. When Extension Backs are not used, two Extension Upright End Covers should be ordered for each Extension Upright for a finished look. $5.65

Madix Wall Support

Galvanized support installs in wall side of Upright slotting to mount Basic Upright to wall. Due to varying field conditions, the mounting hardware is not included.
